A memory stick is something almost everyone uses—small, portable, and essential for storing important data. But beneath its simple exterior lies a complex network of microelectronics working together with precision.
What most users never see is the hidden world inside these devices. Tiny solder joints, compact chips, and intricate connections determine whether that memory stick performs reliably or fails unexpectedly.
This is exactly why internal quality matters. In modern electronics manufacturing, ensuring the integrity of internal components is critical—and this is where X-ray inspection plays a vital role.
Why Internal Defects in Electronics Are a Major Risk
Electronic devices are highly sensitive to even the smallest internal defects. These issues are often invisible from the outside but can significantly impact performance.
Common internal defects include:
- Solder voids that weaken electrical connections
- Cracked or cold solder joints that lead to intermittent failures
- Misaligned or improperly placed components
- Hidden PCB trace damage that disrupts signal flow
These defects don’t just affect functionality—they directly impact product lifespan and reliability. A single unnoticed flaw can lead to early device failure, costly recalls, and loss of customer trust.
For manufacturers, maintaining internal quality is not just about performance—it’s about protecting brand reputation and ensuring long-term reliability.
Application Example 1: Memory Devices
Memory devices like USB sticks present a unique inspection challenge due to their compact design and high component density. Critical connections are tightly packed, leaving little room for error.
This is where Xray Lab’s 2D X-ray inspection provides a powerful advantage. By looking inside the device without disassembly, manufacturers can instantly identify:
- Weak or incomplete solder joints
- Voids within solder connections
- Misalignment of micro-components
- Structural inconsistencies in chip placement
Unlike traditional inspection methods, X-ray imaging reveals defects that are completely invisible to the naked eye. This allows manufacturers to detect issues early in the production process, reducing waste and improving overall yield.
For more complex electronic assemblies, computed tomography (CT) enables deeper internal visualization, improving defect detection in highly compact memory and semiconductor structures.

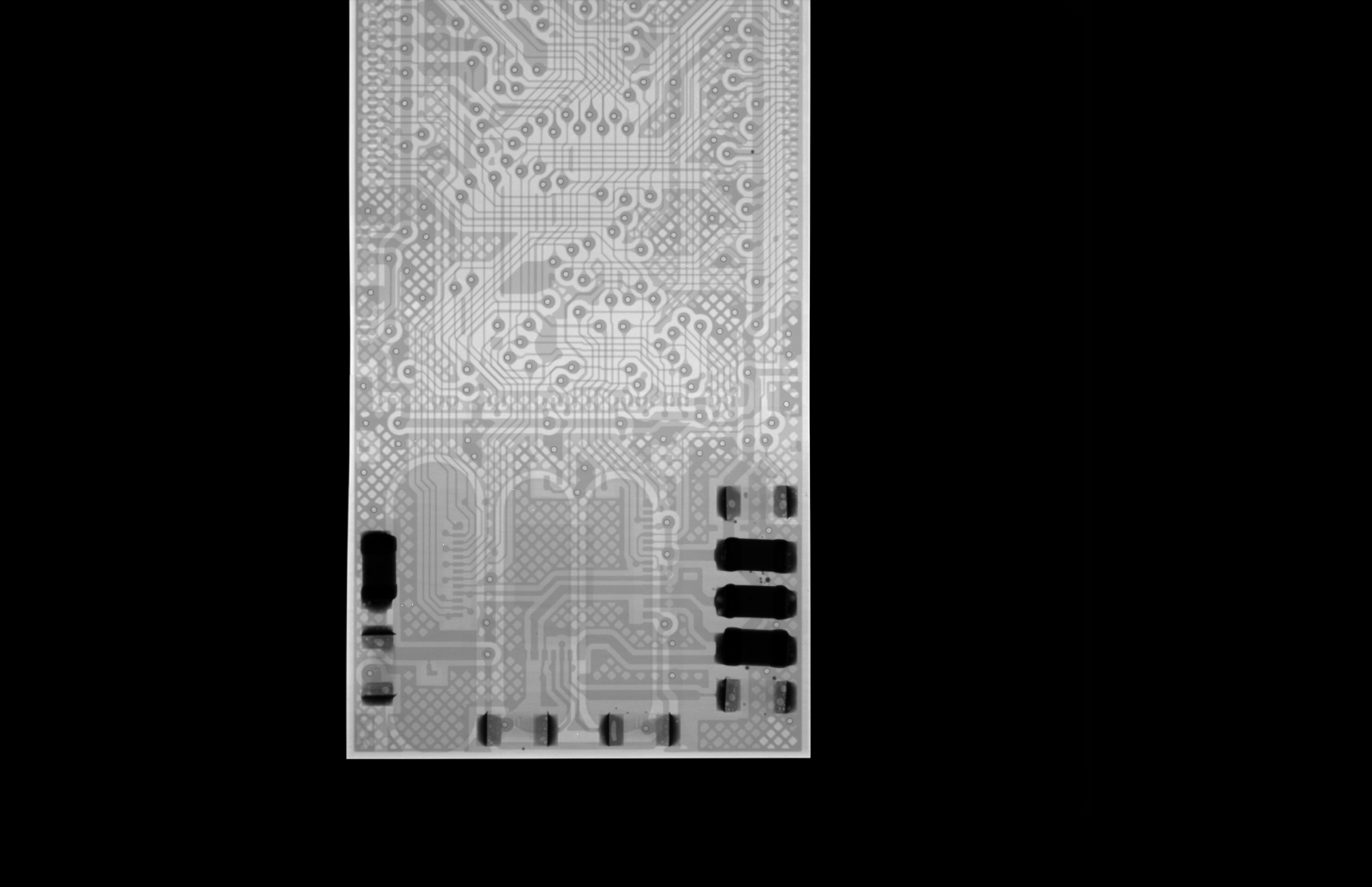

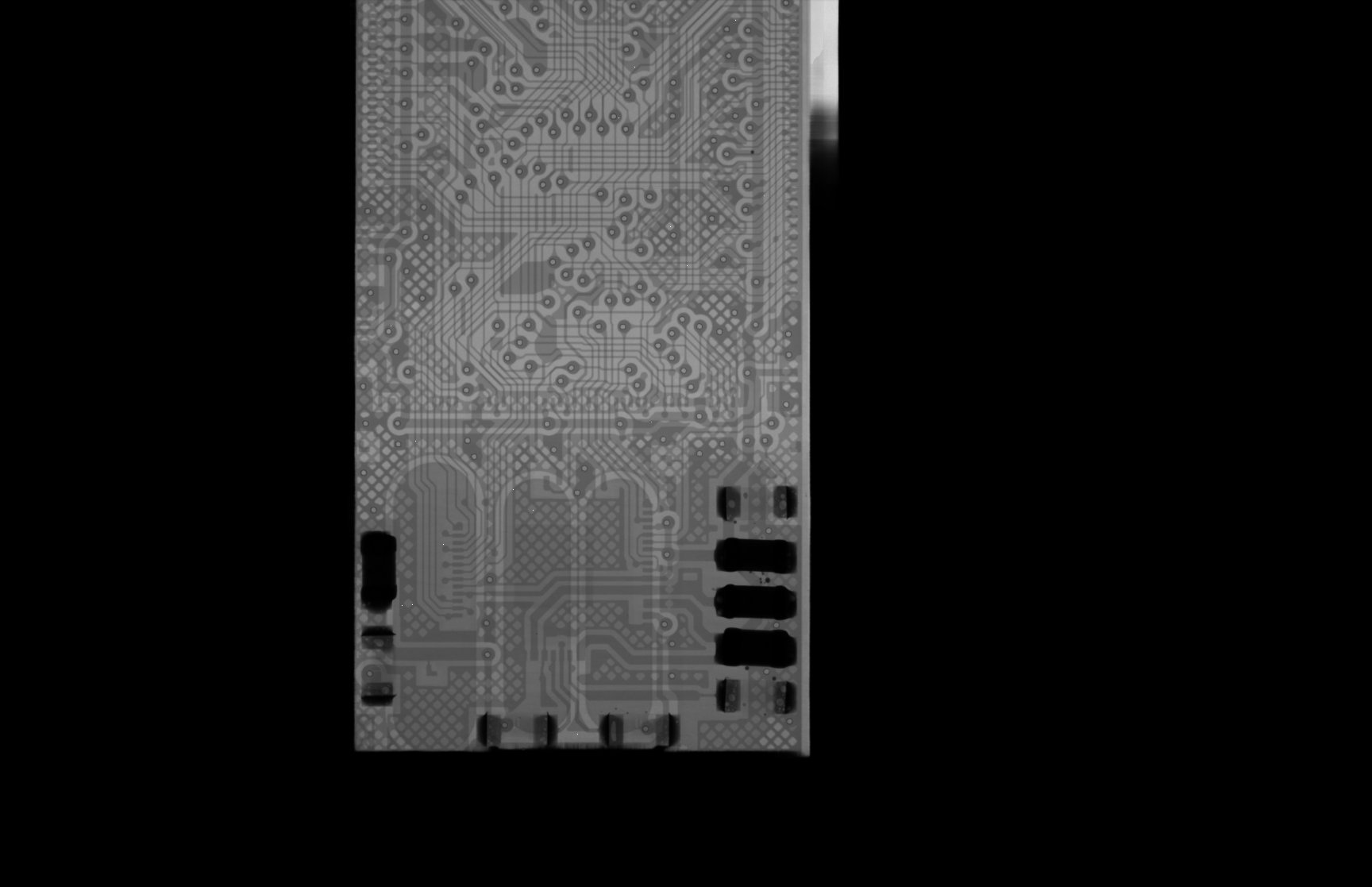

X-ray inspection of a memory device revealing internal chip connections and solder integrity.
Application Example 2: PCB Inspection
Printed Circuit Boards (PCBs) are the backbone of modern electronics, supporting multiple components and complex circuitry within a limited space. Ensuring their internal integrity is essential for high-performance devices.
Using Xray Lab’s X-ray inspection solutions, manufacturers can analyze PCBs in detail without damaging them. This enables:
- Accurate inspection of dense component layouts
- Verification of solder joint quality across multiple layers
- Detection of hidden trace defects and connectivity issues
This is further supported by Xray Lab’s microelectronics inspection solutions, where X-ray imaging is used to detect hidden solder joint failures and internal PCB defects that are not visible through optical inspection methods.
This non-destructive approach ensures that even the most complex boards can be validated quickly and efficiently. It also supports faster production cycles while maintaining strict quality standards.

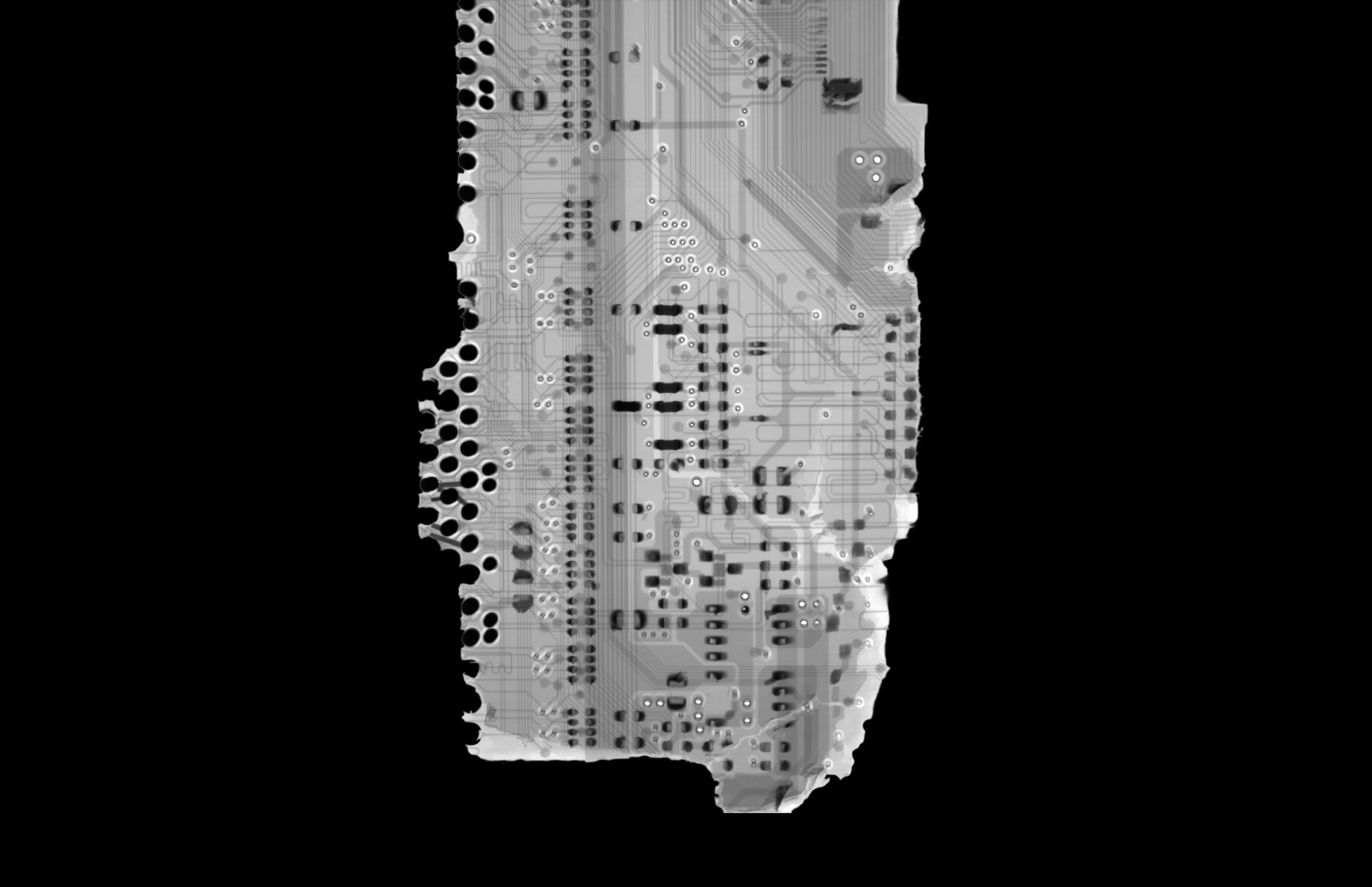

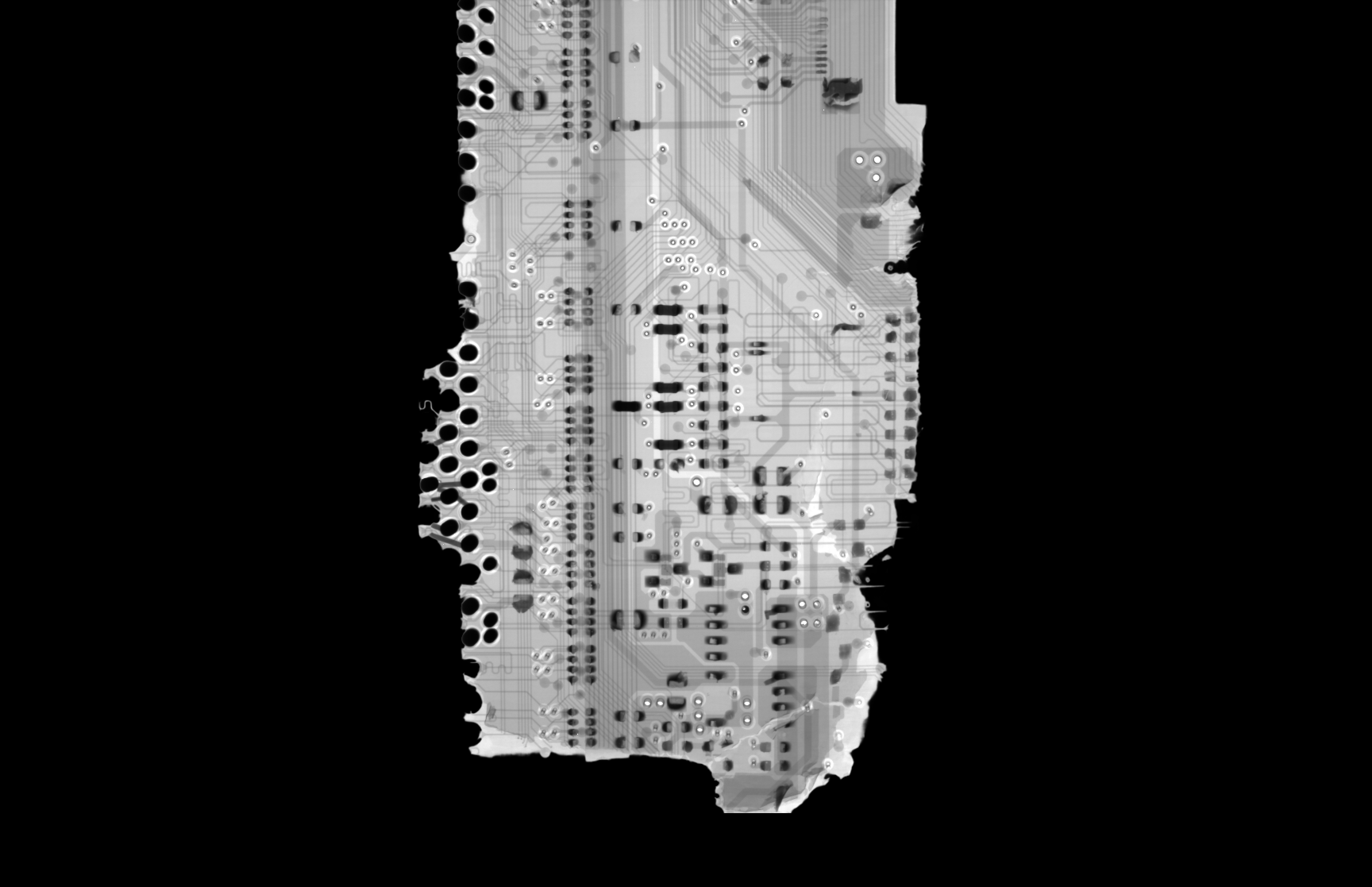

High-resolution X-ray image of a PCB showing component density, solder joints, and internal trace structures.
Key Benefits of Xray Lab’s NDT Solutions
Across both memory devices and PCBs, Xray Lab’s X-ray inspection solutions deliver clear, measurable advantages:
- High-resolution imaging enables precise detection of even the smallest defects
- Fast inspection cycles support high-throughput production environments
- Non-destructive testing ensures components remain intact during inspection
- Scalable solutions adapt to both small-scale operations and large manufacturing lines
As highlighted by Xray Lab, non-destructive testing (NDT) forms the foundation of modern product reliability by ensuring internal defects are detected without damaging the component during inspection.
These benefits allow manufacturers to improve product quality while optimizing efficiency and reducing production costs.
Conclusion
Reliability in electronics doesn’t start on the surface—it starts inside.
Hidden defects can compromise performance, shorten product lifespan, and damage brand trust. That’s why internal inspection is no longer optional in modern manufacturing.
X-ray inspection provides the visibility manufacturers need to ensure every component meets the highest quality standards. In today’s competitive electronics industry, it is not just a quality control tool—it is a necessity.
With advanced non-destructive testing solutions, Xray Lab empowers manufacturers to detect hidden defects, improve production efficiency, and deliver reliable, high-quality electronic products to the market.
Frequently Asked Questions
What Is X-Ray Inspection In Electronics?
X-ray inspection is a non-destructive testing method used to examine the internal structure of electronic components. It helps detect hidden defects such as solder voids, cracks, and misaligned components without damaging the product.
Why Is X-Ray Inspection Important For PCB Quality?
X-ray inspection allows manufacturers to analyze multi-layer PCBs and dense component layouts. It ensures solder joint integrity, detects hidden trace issues, and prevents failures that could impact device performance.
Can X-Ray Inspection Detect Defects In Memory Devices?
Yes, X-ray inspection is highly effective for compact devices like memory sticks. It reveals internal chip connections, solder quality, and structural issues that are not visible through traditional inspection methods.
Is X-Ray Inspection Safe For Electronic Components?
Yes, X-ray inspection is completely non-destructive. It does not affect the functionality or performance of electronic components, making it ideal for quality control during manufacturing.
How Does X-Ray Inspection Improve Manufacturing Efficiency?
By detecting defects early in the production process, X-ray inspection reduces rework, minimizes waste, and improves overall yield. This leads to faster production cycles and cost savings for manufacturers.
