Industrial CT scanning for rivet inspection is transforming how manufacturers inspect rivet joints, particularly in industries where structural strength and durability are critical. Riveted assemblies are widely used in automotive and aerospace structures, where components are often layered or joined in ways that hide internal features from conventional inspection methods.
As a result, joints that appear correct externally may still contain internal defects that affect performance. CT scanning addresses this by enabling full internal visualization without damaging the component. This approach plays a key role in broader quality assurance strategies, as discussed in “The Role of Computed Tomography in Modern Manufacturing Quality Control”.
With typical voxel resolutions in the range of 30 – 80 µm, CT allows clear observation of rivet deformation, interlock formation, and layer interaction within the joint. Given that defect detectability is typically limited to features around 2–3 times the voxel size, this resolution allows reliable identification of internal gaps and discontinuities within the rivet joint.

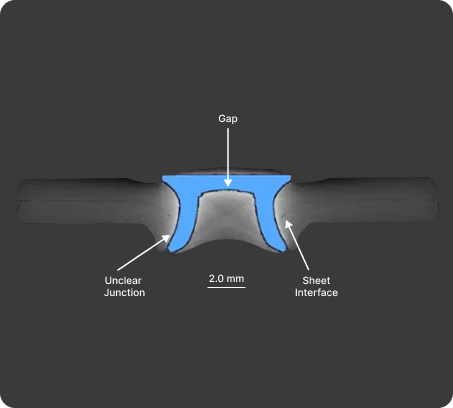

(a) CT scan highlighting internal gap, unclear junction, and sheet interface defects
Why Rivet Joints Are Critical in Manufacturing
Rivet joints are widely used because they provide strong, permanent connections, especially in lightweight and multi-material assemblies. They are particularly valuable where welding is not feasible or could damage materials. Similar inspection challenges are also seen in small precision components, as highlighted in “X-Ray Inspection for Micro-Mechanical Components: Springs, Fasteners, and Precision Parts”.
Rivet sizes vary depending on the application, but in typical automotive and lightweight structural assemblies, rivet diameters are commonly in the range of 2-6 mm, with sheet thicknesses around 1-3 mm per layer. During the joining process, the rivet deforms to form an internal interlock, typically on the order of 0.2–0.8 mm, which plays a critical role in joint strength.
Typical applications include:
- Automotive body structures and chassis components
- Aerospace panels and lightweight assemblies
- Sheet metal fabrication and industrial equipment
In these applications, the integrity of each rivet directly affects load distribution and structural stability. A small defect in a single joint can propagate into larger failures under stress or vibration.
Common Defects in Rivet Joints
Rivet joints can develop several types of internal defects during the joining process, often due to improper force, alignment, or material behavior.
These defects include:
- Incomplete interlock, reducing joint strength
- Cracks in the rivet or surrounding material
- Misalignment during installation
- Internal voids or gaps
- Excessive or uneven deformation
Why Traditional Inspection Methods Fall Short
Traditional inspection methods struggle to detect these internal issues effectively. Visual inspection only evaluates surface conditions, while destructive testing requires cutting the component, making it unsuitable for production environments.
Additionally, sampling-based inspection increases the risk of missing defects, especially in high-volume manufacturing. This creates a need for a more reliable and comprehensive inspection approach.
CT Inspection for Rivet Joints
Rivet joint defect detection using CT scanning provides deep insight into rivet joint integrity by revealing internal features that are otherwise inaccessible. Instead of relying on assumptions or destructive sectioning, engineers can directly observe how the rivet deforms and interacts with surrounding materials. This is especially relevant in multi-layer structures, where bonding and material interaction are critical, as explored in “NDT for Multi-Material Assemblies: Ensuring Bonding Quality and Structural Integrity”.
Rivet quality is evaluated based on parameters such as interlock size, rivet head position, and remaining bottom thickness, all of which directly influence joint strength and fatigue performance. These features are typically assessed through cross-sectional analysis, making volumetric CT inspection essential.
This is particularly important in safety-critical industries, where even micro-level defects can lead to fatigue failure over time.

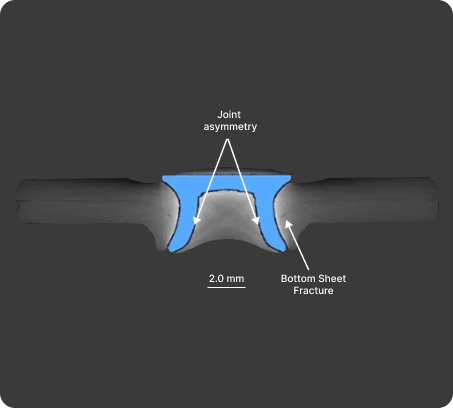

(b) CT scan of a rivet joint showing joint asymmetry and bottom sheet fracture
Key inspection capabilities include:
- Measuring interlock size and symmetry to ensure proper joint formation
- Detecting cracks and fractures that may propagate under stress
- Evaluating rivet penetration depth for process validation
- Identifying voids or internal gaps that weaken the connection
- Assessing deformation behavior across different materials
By combining visual analysis with precise measurements, CT allows manufacturers to optimize riveting parameters and ensure consistent joint quality.

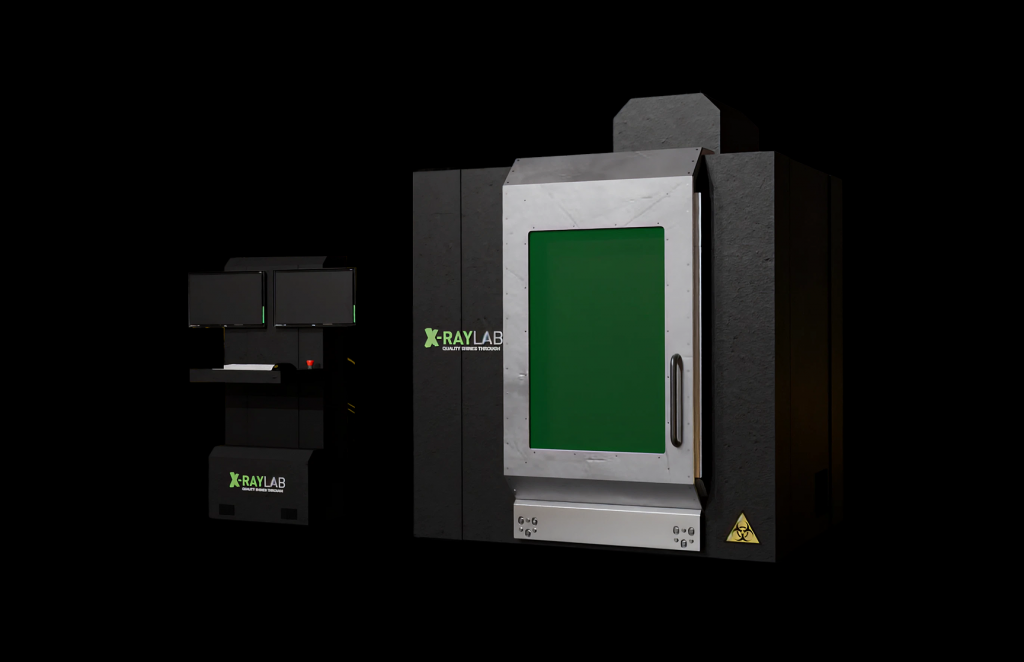

XRAY-LAB CT System for Rivet Inspection:
XRAY-LAB enhances rivet inspection through high-resolution CT systems that provide accurate 3D measurements and defect visualization. Our solutions enable engineers to detect subtle irregularities, validate joining processes, and improve consistency across production batches.
For rivet assemblies, CT scans are typically performed in the range of 160-200 kV to ensure sufficient penetration through multiple material layers. By adjusting the scan setup and magnification, voxel resolutions of 30-80 µm can be achieved, allowing clear visualization of interlock formation and internal gaps within the joint.
Benefits of CT for Rivet Inspection
CT scanning offers a significant advantage over traditional inspection methods by combining accuracy with efficiency.
Key benefits include:
- Non-destructive inspection of internal structures
- Full 3D visualization of complex joints
- High precision and repeatability
- Early detection of hidden defects
- Improved process optimization and quality control
These advantages make CT an essential tool for modern manufacturing environments.
Conclusion
Rivet joints are critical to structural performance, yet their internal quality is difficult to assess using conventional methods. Industrial CT scanning provides a powerful solution by enabling detailed, non-destructive inspection of internal features.
As manufacturing standards continue to rise, CT technology is becoming a key enabler of reliability, safety, and innovation.
Frequently Asked Questions
What defects can CT detect in rivet joints?
CT can identify internal cracks, voids, interlock issues, and misalignment that are not visible externally.
Is CT scanning suitable for production environments?
Yes, it can be used in both laboratory analysis and inline inspection systems.
