Microfocus X-ray technology is a high-precision imaging method used in modern non-destructive testing (NDT) to inspect the internal structure of components without damaging them. It is widely used in industries where even microscopic defects can lead to performance failure, such as electronics, aerospace, automotive, and semiconductor manufacturing.
Unlike conventional X-ray systems, microfocus technology is designed to produce extremely small focal spots, enabling significantly higher image resolution and clarity. This makes it particularly important in advanced inspection environments, including industrial computed tomography (CT) systems where both 2D and 3D internal imaging are required.
In advanced inspection solutions such as those developed for industrial CT applications at XRAY LAB, microfocus X-ray technology plays a central role in achieving accurate internal visualization of complex components.

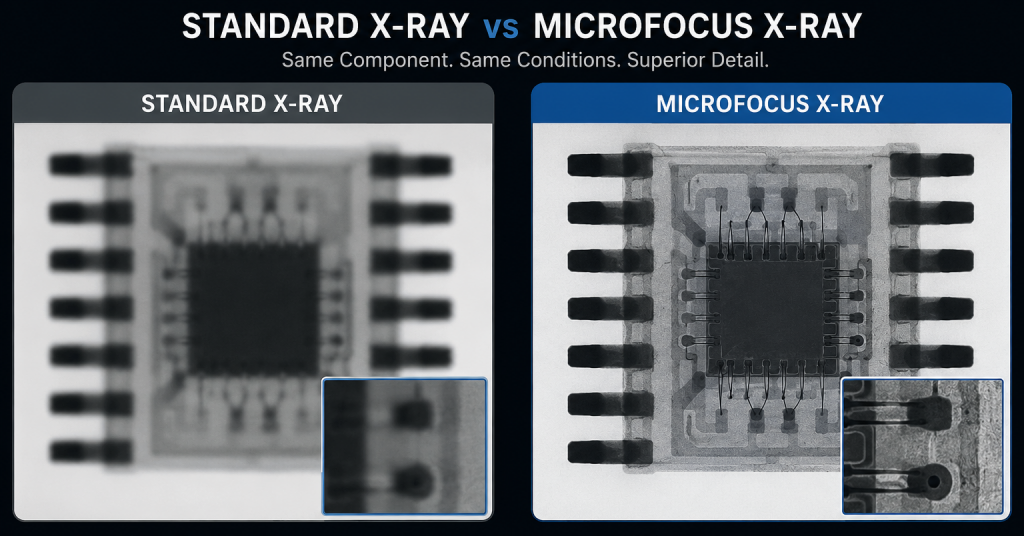

Side-by-side comparison of standard X-ray and microfocus X-ray imaging on the same electronic component, demonstrating how reduced focal spot size in microfocus systems significantly enhances image sharpness and reveals internal micro-defects with higher clarity.
What Is Microfocus X-Ray Technology?
Microfocus X-ray technology refers to an X-ray generation technique in which the electron beam is focused onto a very small area of the target material inside the X-ray tube. This produces a focal spot in the micrometer range, significantly smaller than that of conventional X-ray systems.
Read the blog for Difference between Industrial X-Ray and CT scan more detailed analysis.
The basic working process includes:
- Acceleration of electrons inside the X-ray tube
- Impact of electrons on a metal target (anode)
- Generation of X-rays from a very small focal region
- Detection of transmitted radiation to create an image
Because the emission area is extremely small, the resulting X-ray beam has very low geometric distortion, allowing for highly detailed imaging of internal structures.
This principle is especially important in industrial CT systems, where multiple X-ray images are captured from different angles and reconstructed into 3D models for analysis.
Focal Spot Size and Image Sharpness
The focal spot size is one of the most critical factors influencing image quality in X-ray systems.
The focal spot is the physical area on the anode where the electron beam strikes and generates X-rays. In microfocus systems, this area is extremely small—often measured in micrometers (µm).
Impact on image quality
Image sharpness is strongly affected by geometric unsharpness:
- Smaller focal spot → sharper edges and higher detail visibility
- Larger focal spot → increased blur and reduced resolution
This becomes especially important when inspecting fine structures such as solder joints, micro-cracks, or internal voids in dense materials.
In industrial CT systems, including those used in XRAY LAB inspection workflows, maintaining a small focal spot is essential for achieving high-resolution reconstruction of internal geometries.
Why Microfocus X-Ray Technology Is Important in Industry?
As manufacturing continues to move toward miniaturization and complex assemblies, traditional inspection methods are no longer sufficient to detect internal defects.
Microfocus X-ray technology is widely used in industries such as:
- Electronics manufacturing: Inspection of PCBs, BGA components, and micro solder joints
- Semiconductor industry: Detection of bonding defects and internal voids
- Automotive engineering: Evaluation of lightweight and safety-critical components
- Aerospace applications: Inspection of high-precision structural parts
In advanced industrial CT systems like those developed for high-resolution inspection at XRAY LAB, microfocus technology enables detailed 3D visualization of internal structures, supporting quality assurance and failure analysis processes.
Relationship Between Focal Spot, Magnification, and Resolution
The performance of a microfocus X-ray system depends on the interaction of several technical parameters.
1. Focal Spot Size
A smaller focal spot reduces image blur and improves spatial resolution.
2. Magnification Geometry
Magnification is controlled by system setup:
- Object closer to the source → higher magnification
- Detector positioning affects image scaling
However, magnification alone cannot improve image quality unless the focal spot is sufficiently small.
3. Spatial Resolution
Spatial resolution defines the smallest visible feature in an image and depends on:
- Focal spot size
- Detector pixel size
- System geometry and magnification
Key Insight
High-resolution imaging is achieved only when a small focal spot is combined with optimized system geometry and detector performance. This is the principle used in advanced CT inspection systems like those integrated into XRAY LAB solutions.
Industrial Relevance of Microfocus X-Ray Systems
Microfocus X-ray technology has become essential in quality control and failure analysis because it allows:
- Non-destructive internal inspection
- Detection of microscopic defects
- High-resolution imaging of complex assemblies
- Accurate 3D reconstruction in CT systems
- Improved reliability in critical manufacturing processes
In modern industrial environments, especially those requiring high-precision CT-based inspection workflows, XRAY LAB utilizes these principles to support advanced defect detection and structural evaluation.
Conclusion
Microfocus X-ray technology is a key advancement in industrial imaging, enabling extremely high-resolution inspection through the use of a very small focal spot. Its importance continues to grow as industries demand greater precision and reliability in smaller and more complex components.
In advanced inspection systems, including industrial CT solutions used in XRAY LAB workflows, microfocus technology is essential for achieving accurate internal visualization and ensuring product integrity across critical applications.
Frequently Asked Questions
What is microfocus X-ray technology?
Microfocus X-ray technology uses a very small focal spot to produce high-resolution images for non-destructive internal inspection of components.
Why is focal spot size important in X-ray imaging?
Smaller focal spots reduce image blur and improve sharpness, allowing detection of very fine internal defects.
What industries use microfocus X-ray systems?
Electronics, semiconductor, automotive, aerospace, and medical industries commonly use microfocus X-ray and CT systems.
How does microfocus technology improve CT scanning?
It enhances spatial resolution and enables more accurate 3D reconstruction of internal structures.
How is XRAY LAB related to microfocus X-ray technology?
XRAY LAB integrates microfocus X-ray principles into industrial CT systems to achieve high-resolution internal inspection and defect analysis.
