Supplier quality is one of the biggest hidden risk factors in modern manufacturing. Even when documentation, certifications, and dimensional checks appear compliant, internal defects can still compromise performance, durability, and safety.
The challenge is simple: you cannot manage what you cannot see.
XRAY LAB helps manufacturers solve this problem by providing non-destructive industrial CT scanning that reveals the complete internal structure of supplier components. Instead of relying on surface inspection or random destructive sampling, companies gain full 3D internal transparency before parts enter production.
Table of Contents

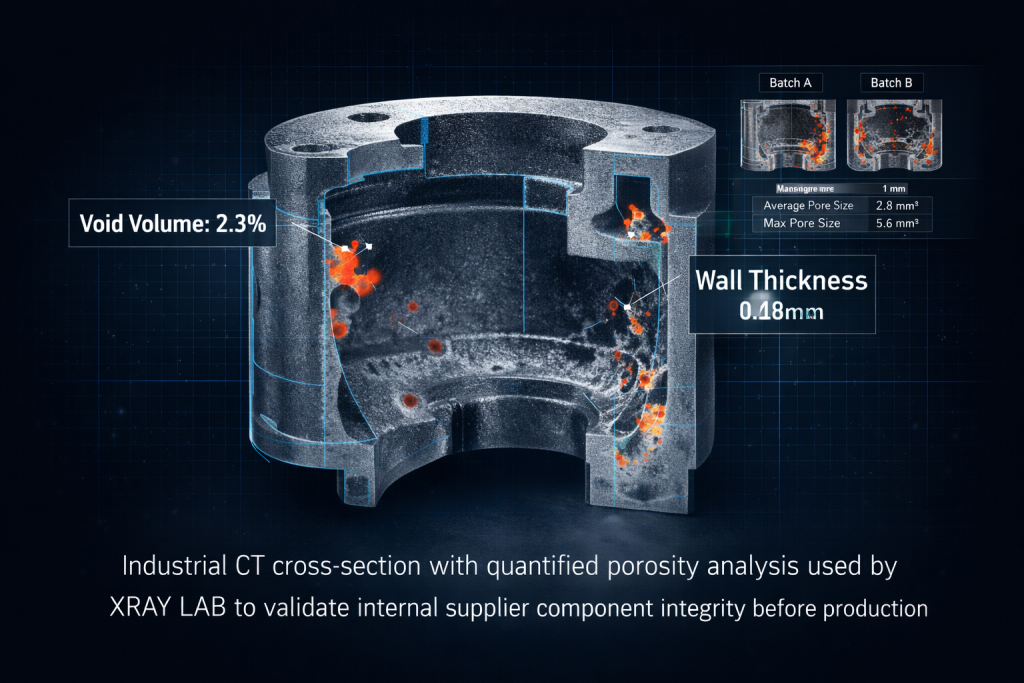

High-resolution CT reconstruction with void volume mapping and wall thickness measurement, enabling XRAY LAB to verify supplier quality with measurable data.
Why Traditional Supplier Validation Is Not Enough — And How XRAY LAB Closes the Gap
Most incoming inspection processes rely on:
- Visual checks
- Dimensional measurements
- Material certificates
- Random destructive testing
While important, these methods do not guarantee internal structural integrity. Porosity in castings, voids in molded components, hidden cracks, or internal misalignment can remain undetected.
XRAY LAB eliminates this blind spot by reconstructing a full volumetric 3D model of each scanned component. Engineering teams can inspect internal features slice by slice, rotate the model in 3D space, and evaluate structural integrity without damaging the part.
This transforms supplier validation from assumption-based approval into data-driven verification.
How XRAY LAB Performs Supplier Quality Validation Using CT
CT scanning at XRAY LAB is not just image generation — it is a structured validation workflow designed to support engineering and procurement decisions.
1. High-Resolution Internal Reconstruction
XRAY LAB captures multiple X-ray projections and reconstructs them into a detailed 3D voxel model. This enables:
- Cross-sectional analysis at any depth
- Internal geometry comparison with CAD data
- Visualization of hidden defects
- Inspection of fully assembled parts without disassembly
How XRAY LAB helps:
Manufacturers gain complete internal visibility before approving supplier batches, reducing reliance on destructive methods.
2. Measurable Defect Quantification
Supplier discussions require measurable data — not just visual evidence.
XRAY LAB provides quantitative analysis including:
- Void volume percentage
- Porosity distribution mapping
- Crack length measurement
- Wall thickness variation analysis
- Density variation assessment
How XRAY LAB helps:
This measurable data supports objective supplier feedback, corrective action planning, and acceptance or rejection decisions based on engineering criteria.
3. First Article Inspection and New Supplier Onboarding
When onboarding new suppliers, risk levels are typically highest due to process instability.
XRAY LAB supports:
- First Article Inspection (FAI)
- Pre-series production validation
- Tooling verification
- Process change assessment
- Material substitution checks
How XRAY LAB helps:
By validating internal integrity before mass production begins, XRAY LAB reduces the risk of line stoppages, large-scale scrap, and downstream warranty exposure.
Preventing Downstream Failures Before They Become Expensive
Supplier-related defects often surface during assembly or, worse, after the product reaches customers. The cost of correction increases significantly at each stage of production.
XRAY LAB helps manufacturers intervene early by identifying:
- Structural weaknesses that may cause fatigue failure
- Internal void clusters affecting mechanical strength
- Assembly inconsistencies impacting performance
- Hidden damage from manufacturing processes
By detecting these issues during incoming inspection, XRAY LAB helps reduce:
- Scrap and rework
- Production delays
- Warranty claims
- Reputation risk
The result is stronger process control and improved supplier accountability.
Ongoing Supplier Performance Monitoring
Supplier validation should not stop after initial approval. Batch-to-batch consistency is essential for long-term reliability.
XRAY LAB provides repeatable CT inspection services that allow manufacturers to:
- Compare multiple production batches
- Track porosity trends over time
- Monitor internal geometry stability
- Support supplier corrective actions with objective data
How XRAY LAB helps:
Manufacturers gain independent verification instead of relying solely on supplier self-reporting, strengthening overall quality control systems.
Industry Applications Where XRAY LAB Adds Value
XRAY LAB supports supplier validation across high-reliability industries, including:
- Automotive cast and machined components
- Aerospace composite and structural parts
- EV battery cells and modules
- Electronic assemblies and solder joints
- Precision injection-molded components
In each case, XRAY LAB ensures that internal quality matches external specifications before integration into critical systems.
Conclusion
Supplier quality validation cannot depend solely on documentation, surface inspection, or occasional destructive testing. Internal defects are often the root cause of performance failures — and they remain invisible without advanced inspection methods.
XRAY LAB helps manufacturers shift from reactive quality control to proactive risk prevention.
Through high-resolution 3D CT reconstruction, measurable defect quantification, structured engineering reporting, and batch comparison analysis, XRAY LAB provides the internal transparency needed to make confident supplier decisions.
Frequently Asked Questions
How does XRAY LAB help validate supplier components?
XRAY LAB uses industrial CT scanning to create full 3D internal models of parts, detect hidden defects, and provide measurable defect analysis for informed approval decisions.
Can XRAY LAB support new supplier onboarding?
Yes. XRAY LAB performs First Article Inspection and pre-series internal validation to reduce risk before full production begins.
What types of defects can XRAY LAB detect?
XRAY LAB detects porosity, voids, cracks, wall thickness deviations, internal misalignment, density variations, and assembly inconsistencies.
Is CT scanning suitable for assembled components?
Yes. XRAY LAB can inspect fully assembled parts without disassembly, preserving component integrity.
How does CT scanning reduce warranty risk?
By identifying internal structural weaknesses early, XRAY LAB helps prevent failures that would otherwise appear during use or after product delivery.
