Introduction
Lithium-ion batteries are the backbone of modern technology, powering everything from smartphones to electric vehicles and industrial energy storage systems. Although these cells may appear flawless externally, hidden internal defects can compromise performance or cause catastrophic failure. Electrode misalignment, contamination, and dendrite growth are among the most critical issues.
Non-Destructive Testing (NDT) in the USA has evolved to address these risks. X-ray and CT inspection allow manufacturers to examine sealed cells without disassembly, providing precise insight into internal conditions. Xray Lab delivers expert NDT USA services to ensure battery reliability, safety, and compliance.
Table of Contents

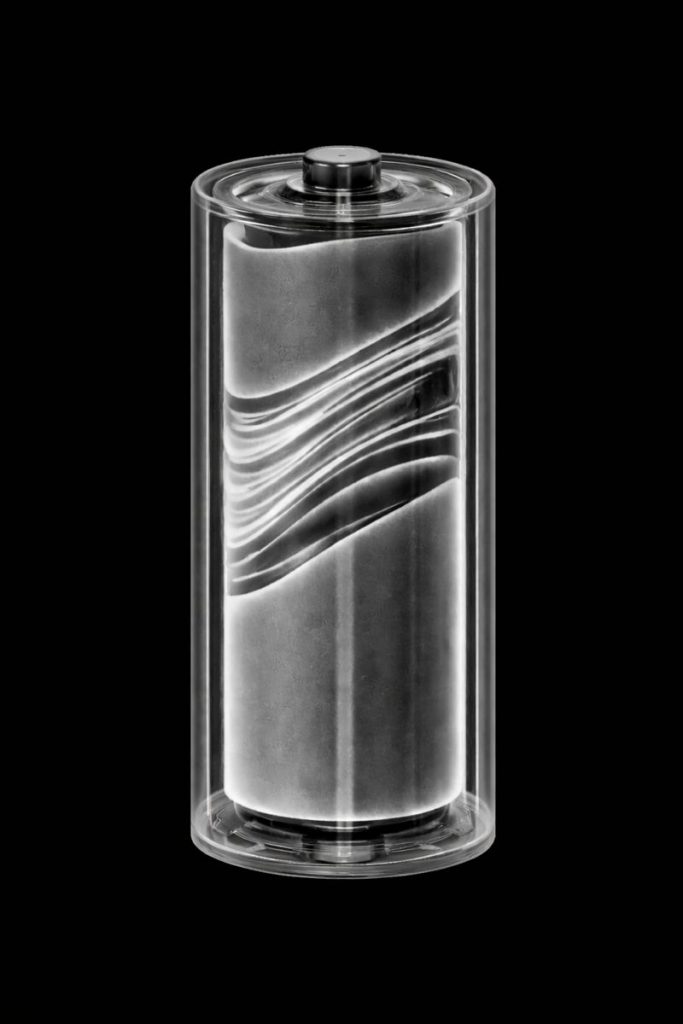

X-ray inspection identifies misaligned electrodes and structural anomalies in lithium-ion cells.
Understanding Hidden Battery Defects

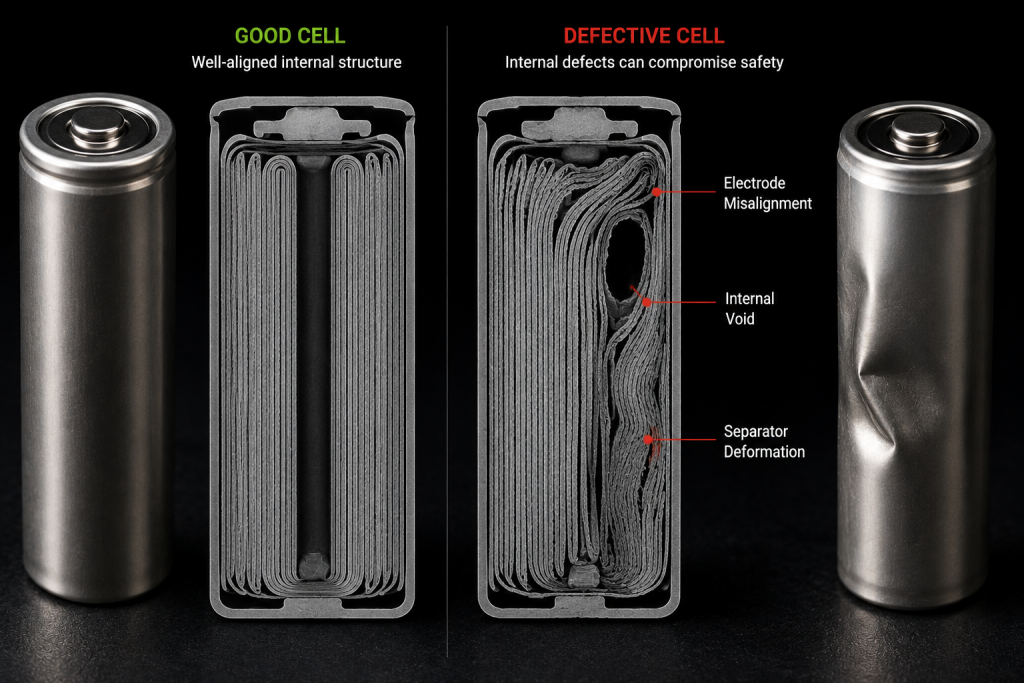

The internal architecture of lithium-ion cells is deceptively complex. Electrode sheets must align perfectly, separators must maintain uniform spacing, and the electrolyte must be evenly distributed. Any deviation—whether a micro-void, foreign particle, or dendrite filament—can create hotspots, reduce energy efficiency, or trigger short circuits.
Dendrite formation is especially dangerous, as microscopic metallic filaments can pierce the separator, creating an internal short. Electrode misalignment and voids can lead to uneven current distribution, causing localized heating and reduced performance. These hidden flaws highlight the necessity of advanced NDT techniques to safeguard battery function and safety.
How X-Ray and CT Inspection Works
X-ray inspection provides a two-dimensional view, quickly revealing electrode misalignment, voids, and foreign inclusions. It is ideal for rapid assessments and quality checks on production lines.
For more complex or high-density cells, CT scanning offers a three-dimensional perspective. CT generates volumetric models that map dendrite formation, electrode alignment, and internal voids in detail. Software tools then analyze this data to quantify defects, measure their location, and create actionable reports for manufacturers.
This combination of imaging and analysis ensures that every cell is evaluated thoroughly, without risking damage during inspection.
Benefits of NDT for Battery Safety
Using X-ray and CT inspection to assess battery cells offers significant advantages. Manufacturers can detect defects early, reduce the risk of recalls or warranty claims, and comply with rigorous safety standards in the USA. NDT also helps optimize production quality, ensuring that each lithium-ion cell performs reliably over its lifespan.
Xray Lab combines state-of-the-art imaging with expert interpretation, providing NDT USA services that identify hidden anomalies, safeguard battery performance, and ensure the highest levels of safety and reliability.
Frequently Asked Questions
What types of battery defects can X-ray and CT detect?
Electrode misalignment, foreign particles, voids, dendrites, and internal structural issues.
Can CT scanning detect dendrite formation?
Yes, CT scanning provides a 3D view of metallic filament growth and internal defects inside the cell.
Is NDT safe for lithium-ion batteries?
Yes, the process is non-destructive and does not compromise cell integrity.
Why is internal inspection critical for EV batteries?
Undetected internal defects can lead to performance loss, thermal runaway, or catastrophic failure.
How does Xray Lab ensure accurate inspection in the USA?
Xray Lab uses advanced imaging systems and expert analysis to deliver precise defect detection and actionable reports for battery manufacturers.
